Portable E-Light+RF IPL Device

Portable E-Light RF IPL Hair Removal Beauty Equipment

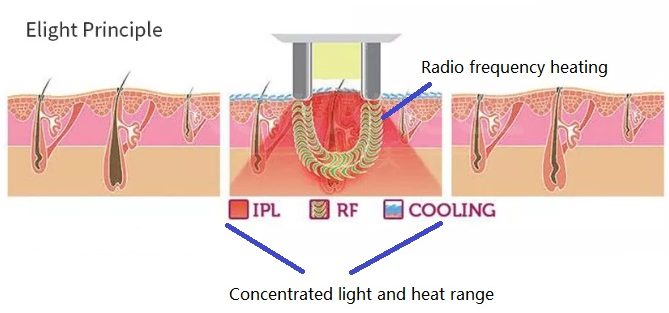

IPL is short for Intense Pulse Light, and also known as IPL for skin rejuvenation. It is a kind of strong pulse of wide spectrum wavelengths of intense pulse light, which can penetrate from the epidermis to the dermis.
It makes full use of selective absorption of light to remove or erase wrinkles, shrink pores and remove hair. Detailed, the pigment within the lesion group will be instantly heated which makes the lesion vessel atrophied or blocked, then stimulates the collagen reproduction and prompts elastic fibers to rearrange, that is what we called IPL for skin rejuvenation.

Related video

Portable E-Light+RF IPL System Description


  1. Benign pigment problem: Spots removal, freckles, chloasma, color fleck, age pigment, chorioplaque and partial pigmentation.
  2. Vascular problem: Capillary vessel expansion, reddened face, and blood streak.
  3. Acne and pimple removal.
  4. Skin rejuvenation: Shrink pores, blackhead removal, anti-wrinkle, skin whitening, and skin elasticity enhancement.
  5. Hair removal: Unwanted hair removal.

750-1200nm: Hair Removal (Skin Type IV)
690-1200nm: Hair Removal (Skin Type III)
640-1200nm: Hair Removal (Skin Type I & II ); Wrinkle Removal
590-1200nm: Pigmentation and Vascularity; Skin Rejuvenation
560-1200nm: Vascular and Pigmented Lesions; Skin Rejuvenation
530-1200nm: Skin Rejuvenation; Superficial Vascular Lesions
510-1200nm: Superficial Vascular Lesions
480-1200nm: Light Pigmentation
430-1200nm: Acne


  1. Portable IPL is controlled by a color touch screen and is proven safe and reliable. It is easy to operate.
  2. Portable size with lightweight and easy for carrying.
  3. Portable IPL can, to a great extent, improve the treatment efficiency by using the 10*45cm big spot treatment.

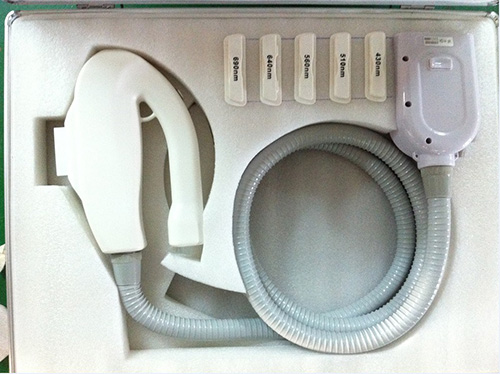

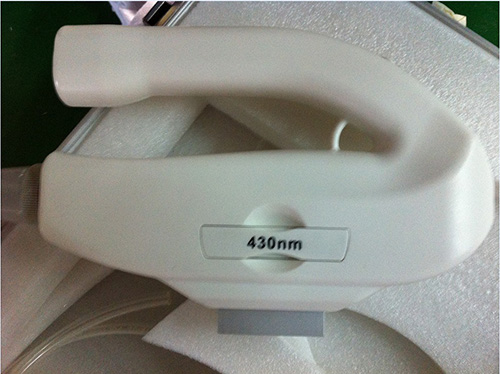

  4. This treatment handle is equipped with different wavelength filters which can accomplish all the treatments.
  5. Sapphire can cool the filter.
  6. Portable IPL adopts a superheat abstractor and automatic temperature controlling system.
  7. The tail design of the plug-in handle is very convenient and easy to change.
Technical Specification
Operation mode: E-light,RF
Screen:  8” color touch screen
Filters wavelength: 430nm,510nm,560nm,640nm,690nm(Standard);

530nm,580nm,750nm (Options)

Energy density:  10~45J/cm2
Pulse Width: 1~10ms
Pulse delay: 5~95ms
Pulse number: 1~4 pcs
Pulse period: 1~3s


RF mode:

RF frequency:1MHz
RF energy:1~50J(Body)
RF energy on E-light system:0~100J
RF output timeon E-light system:0~2s
Cooling system: Semiconductor cooling +Water cooling + Air cooling system
Power supply: AC220V/7A, AC110V/14A
Size: 41*54*31cm(Excluding trolley)

Portable E-Light+RF IPL System4 Portable E-Light+RF IPL System3 Portable E-Light+RF IPL System2

Get Free Quote of Portable E-Light+RF IPL System

Related Products

Related News

IPL is an intense pulsed light with a wavelength of 400-1200nm. It is not a laser, and the wavelength range […]
