Nanosecond Q-switch Laser Pigmentation Treatment Before and After:
Nanosecond ND Yag Laser Pigment Removal Treatment Machine
Q-Switched Nd YAG Laser Pigment Removal Tattoo Removal Machine
HF-503Q Nano laser compared to conventional Q-switched laser, it has a pulse width of only 6ns.
The treatment of the skin is mainly mechanical effect, through the principle of the light mechanical shock wave, the pigment crushes fine particles through focused energy, it is more easily metabolized by the body.
The pulse width output of 6ns can reduce the effect of thermal effect. It is also convenient to observe skin reactions during treatment. It is very effective in treating pores
Nanosecond Q-switch laser Machine Video
Nanosecond Q-switch Laser Pigment Removal Description

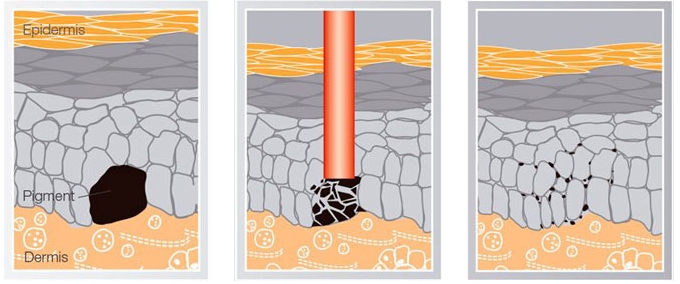

Treatment Principle Of Nanosecond Q switched ND YAG Laser：
Q-switched laser are ideal for pigment treatment: Broad medical opinion based on long-term clinical research believes that Q switched laser are ideal for pigment removal. Their nanosecond pulses generate megawatt-level power, producing a powerful and controllable photomechanical effect that breaks up pigment particles and destroys the cells they contain; effectively removing pigment.
Functions Of Nanosecond Tattoo Removal Q-switched ND YAG Laser:
532nm: used to treat epidermal pigmentation, such as freckles, solar lentigo, epidermal melasma, etc. (mainly for red and brown pigmentation).
1064nm: used to treat tattoo removal, dermal pigmentation, and treatment of certain pigmentation conditions, such as Ota nevus and Hori nevus. (mainly for black and blue pigmentation).
- Melasma.
- Remove tattoos, such as eyeliner, and lip liner.
- Epidermal pigmented spots such as freckles and age spots.
- Acne pits, acne marks, and acne scars.
- Effective repair of sensitive skin, skin whitening, and rejuvenation.
Therapeutic Advantages Of Nanosecond Q-Switched ND YAG Laser:
- Output mode optional 1064nm, 532nm, double pulse output.
- Higher efficiency of pigment removal.
- Don’t damage the normal tissue.

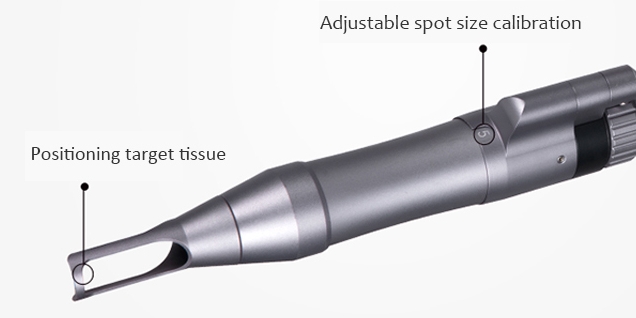

- Stable beam shape with energy calibration ensures the emission of stable and uniform light spots.
Advantage Of Nanosecond Laser Q Switch Yag Tattoo Removal Machine:
- 7-joint arm: 360-degree treatment without dead angles, ensuring the highest energy output and minimal energy loss during laser transmission.
- High peak power (single pulse energy 1200mj): High single pulse energy means a strong ability to crush pigments, making it the nemesis of a full range of pigmentation.
- High-quality laser source (imported from the United States): High-quality and high-performance machines can work continuously around the clock.
- Short pulse width (6ns): Effectively destroys target pigments while minimizing collateral thermal damage, meeting the standards for selective photothermal decomposition.
Nanosecond Q-switched laser ND Yag laser FAQs
What is Q-switched laser?
Q-switched laser uses Q-switched technology, which is an effective method to obtain high-energy short pulses.
The principle of treatment is to use selective photothermal effect to emit high energy in a very short time, targeting and “breaking” the pigment clumps in the skin, turning the pigment clumps into tiny pigment particles, which are then metabolized by the body.
Picosecond (Pico laser) VS nanosecond (Q-switch laser).
Picosecond laser was first developed for better tattoo removal, and its indications have gradually expanded to various pigment spots. Picosecond (ps) and nanosecond (ns) refer to pulse width, i.e. pulse duration.
For currently available devices, the pulse width of pico laser is more than 10 times shorter than that of nanosecond Q-switch laser devices.
Huafei LT-503Q Technical Specification
| Model NO. | LT-503Q | |
| Laser type | Solid-state laser | |
| Wavelength | 1064nm, 532nm | |
| Spot size | 1-10mm(adjustable) | |
| Pulse width | 6ns±2ns | |
| Beam-divergence angle | 1mrad | |
| Cooling system | Enclosed internal circulation water cooling, external circulation of strong wind cooling | |
| Input power | 2200W(AC220V/10A, AC110V/20A) | |
| Energy | 1064nm | 300-1200mJ(adjustable) |
| 532nm | 150~600mJ(adjustable) | |
| Pulse frequency | 1-10Hz(adjustable) | |
| Indicated light wavelength | 650nm | |
